About

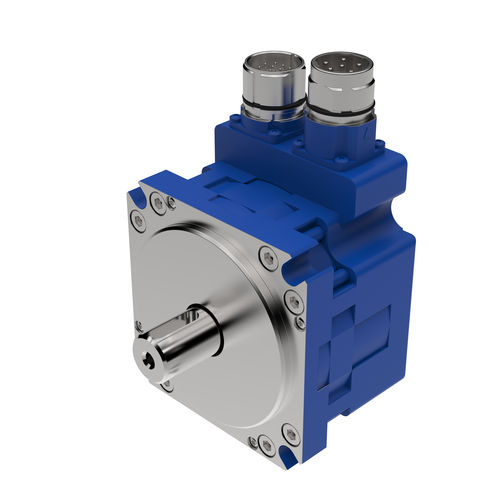

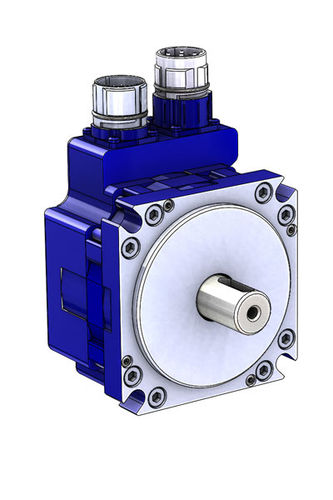

• Our most sold motor, HDD09J, will shortly be available in a 48 V, low voltage version.
• The HDD 09J low voltage is built with the same technology as the traditional AC servomotor. However, it has a coarser winding to cope the higher current when controlled by a low voltage DC-driver. It can therefore be referred to as a DC servomotor.
• Rated speed 3000 rpm, rated torque 2,3 Nm at a rated current 26 A and the compact length of 59,6 mm.
• Weight is only 2,4 kg.
• Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
synchronous
|
| Voltage (V) |
48 - 48
|
| Protection class |
|
| Configuration |
compact
|
| Applications |
for the automotive industry
|
| Other characteristics |
low-voltage
|
| Intensity (A) |
26 - 26
|
| Torque (Nm) |
2.3 - 2.3
|
| Rotational speed (rpm) |
3000 - 3000
|
