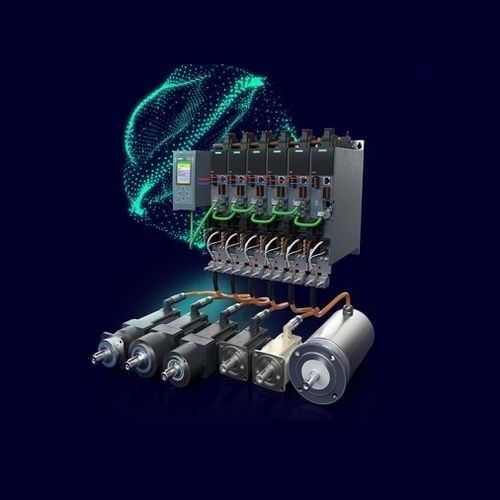

The SINAMICS S210 system comprises a servo converter and a servomotor – and mainly addresses solutions demanding a high dynamic performance in the power range from 50 W to 7 kW. Machine safety functions are integrated. The connection to a higher controller is established via PROFINET IRT communication, fast commissioning via the TIA Portal or the integrated web server and One Button Tuning.

Versatile. Precise. Safe.
Main applications of the SINAMICS S210 servo drive system in particular are machines for packaging, handling such as pick & place, wood and ceramics processing, as well as a digital printing and many additional application areas.

Versatile
•SINAMICS S210 is flexible and versatile. They move light loads with a high dynamic performance – and average and large loads very precisely
•In conjunction with the technological functions of the higher-level controller, there are many possibilities of motion

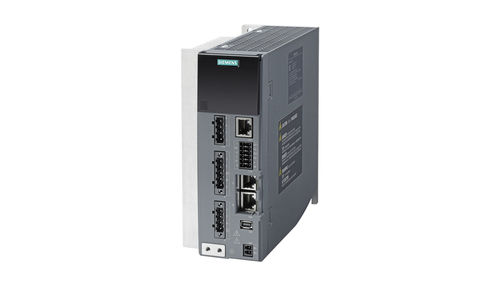

•The SINAMICS S210 converter has an integrated PROFINET IRT (Isochronous Real Time) communications interface for connecting to a control system

Precise
•Low moment of inertia and high overload capability of the motor
•High-resolution encoder with fast scanning
•Short cycle times on the machine are possible even with complex motion control

Safe
•Standard safety concept Safety Integrated. Machine safety for operating and maintenance personnel.
•Integrated safety functions: STO, SBC, SS1-t (time controlled), SS1*, SS2*, SOS*, SLS*, SSM*, SDI*, SLA*, SBT* (*can be optionally activated using a license, SS2, SOS, SLA and SBT at SINAMICS S210 (New) in preparation)

Parameter Name	Parameter Value
AC/DC	three-phase single-phase
Type	asynchronous
Output signal	ProfiNet
Product applications	control for packaging machines for printing machines machine flexible
Voltage (V)	230 - 230
Other characteristics	integrated universal low-voltage
Output power	Max.: 7,000 W (9.51735 hp)Min.: 50 W (0.06798 hp)
