Live LV cable identifier

Use
This device provides all the information necessary to identify a live LV cable among other cables without risk of error :

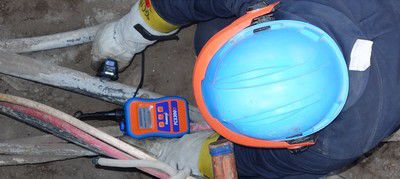

Identification of cables in open trenches or tunnels.
Identification of the three phase conductors (L1, L2 and L3) on single-pole three-phase cables.
Identification or confirmation of the source.
Upstream and downstream cable discrimination at a given point of the network.
Technical specifications

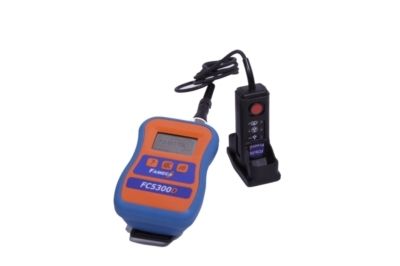

The probe with display guides the user through the steps for each function.
All the information is available in several languages: English, Spanish, German, Polish, Arabic, …
The ultra-sensitive directional probe improves resolution in cable harnesses.
Reliable connectors: double-insulated, sheathed conductors, in accordance with new standards.
Built-in self-test
Works on all types of cables: oil-impregnated paper insulated cables, synthetic cables, cables with double metal reinforcement, even heavily loaded cables, insulated overhead cables; in any environment, in-ground in urban, peri-urban and rural areas for all types earthing systems.

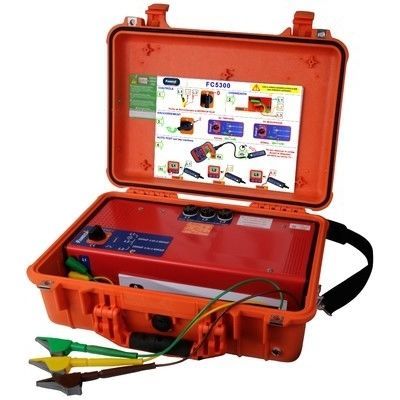

Comes in a sealed, unbreakable case specially designed for field work.
The detector charges using a standard USB-type mains or vehicle charger.
Advantages
Simplicity : the device is connected like any other on customer premises or to a connection terminal downstream of the point to be identified.
Effectiveness : the current drainage principle enables,
- the relevant indications to be confined to the cable sought,
- the device to be used without further intervention, however long the job lasts and whatever the length of the cable.

Parameter Name	Parameter Value
Type	low-voltage
