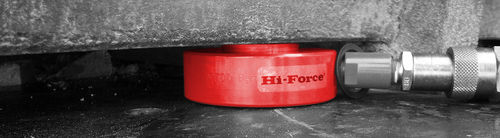

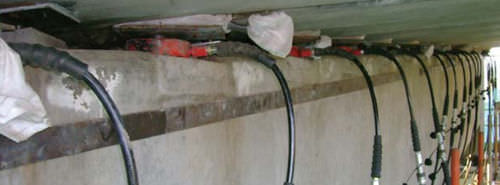

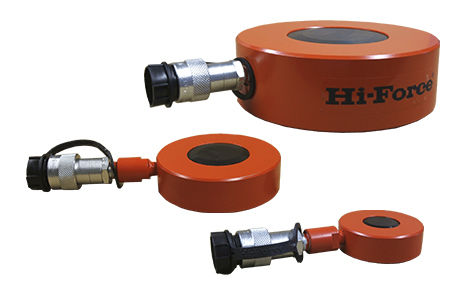

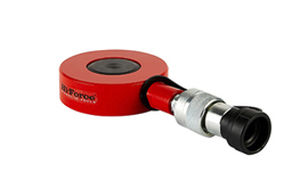

The HVL pancake cylinder range combines a very low closed height with a 6mm stroke, providing a precise adjusting and lifting force in very confined work areas. Ideally suited for applications requiring alignment of machinery, turbines, heavy structures etc. All models are single acting, load return design. The base of all HVL cylinders must be fully supported during use.

Single acting load return
Nitrocarburised piston rod
Low friction bearing surfaces
Anti-extrusion seals
Customised and special design cylinders are available on request

Parameter Name	Parameter Value
Type	hydraulic
Technology	with piston rod
Configuration	single-acting load-return
Applications	for lifting applications turbine
Other characteristics	low-profile short-stroke
Stroke (mm)	6 - 6
Force (N)	104 - 104
Pressure	700 bar (10,152.6 psi)
