Setting the standard for low-pressure hydraulic systems

Advantages at a glance
•smallest installation dimensions
•ultracompact and robust
•wear resistant
•effective end cushioning
•adjustable drive shaft datum

The standard
in low-pressure hydraulic systems

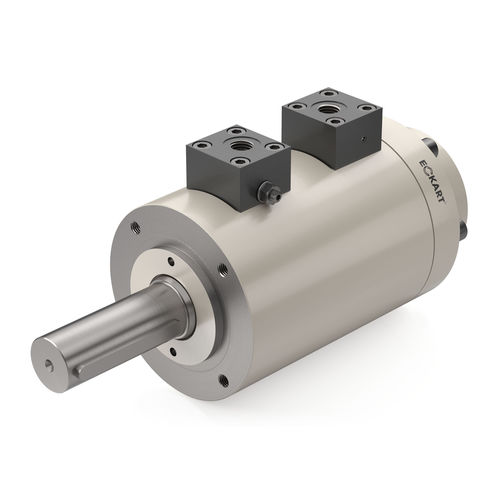

The E1 rotary actuator is the latest rotary actuator in our product range. With regard to application, low-pressure hydraulic systems, with typical pressure ratings of 40, 60, 80 or 100 bar, are of relevance here.

The E1 functions according to the "helical gear" principle and, due to its compact design, only requires a minimum amount of space. The diverse options offer a maximum degree of flexibility and functionality. With the E1, Eckart offers you a high-performance series, allowing optimal adaptation to your particular requirements.

Parameter Name	Parameter Value
Movement	rotary
Type	hydraulic
Technology	helical
Configuration	double-acting
Applications	industrial for robots
Other characteristics	compact high-performance for heavy loads high-torque high load capacity low-pressure wear-resistant
Force (N)	0.25 - 17.66
Torque (Nm)	450 - 450 74 - 74
Pressure	Max.: 100 bar (1,450.4 psi)Min.: 5 bar (72.5 psi)
Rotation angle	90 °, 180 °, 270 °, 360 °
Ambient temperature	Max.: 70 °C (158 °F)Min.: -25 °C (-13 °F)
