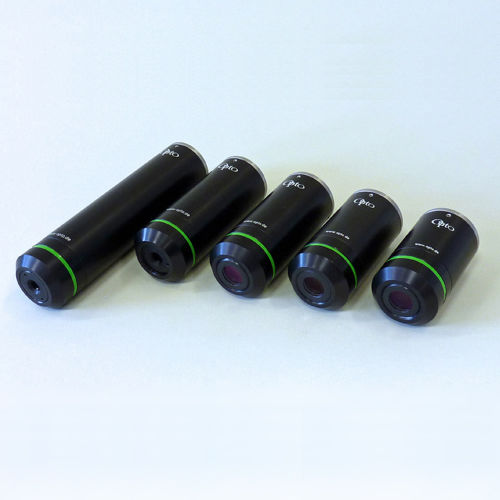

This family of macro lenses is designed to image small objects at very high image resolution and virtually zero distortion. These lenses are typically used for dimensional measurements of mechanical parts, electronic components and board inspection. They are used in printing, microbiology, forensic, and video microscopy applications.

This product has a C-Mount model configuration, and contains <0.01% distortion, 35-mm diameter.

Specification:
Article number 100-MC030
Mag. 0.3x
W.D. 202mm
F-No. 8.4
Resolution 22 LP/mm
Field Depth 1.5mm
Distortion < 0.01%
FoV 1/3'' [mm] 16.0 x 12.0
FoV 1/2'' [mm] 21.3 x 16.0
FoV 1/1.8'' [mm] 23.9 x 17.7
FoV 2/3'' [mm] 29.3 x 22.0

Parameter Name	Parameter Value
Type	telecentric macro
Technical applications	machine vision inspection for measuring
Other characteristics	high-resolution megapixel resolution low-distortion
