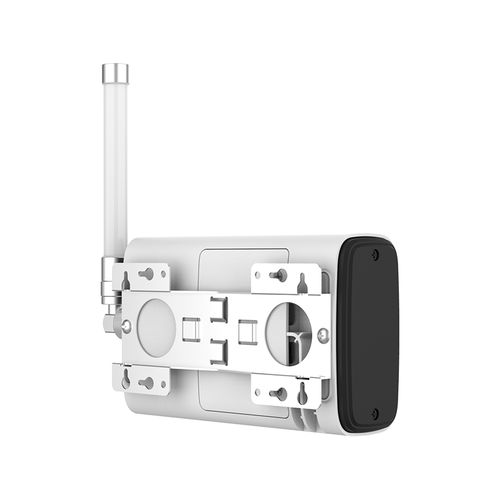

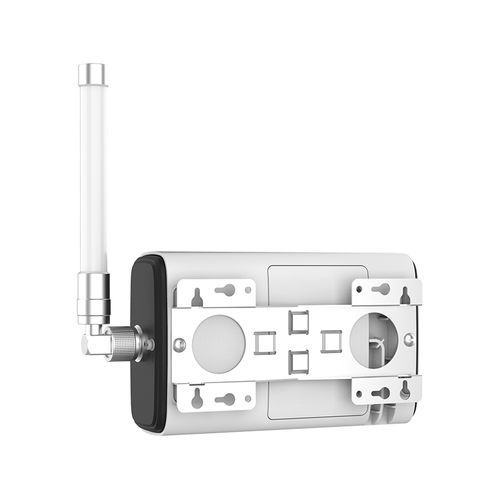

Model - UG65
Hardware System
CPU - Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory - 512 MB DDR4 RAM
Flash - 8 GB eMMC
LoRaWAN®
Antenna - Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Channel - 8
Frequency Band - CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity - -140dBm Sensitivity @292bps
Output Power - 27dBm Max
Protocol - V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface
Port - 1 × RJ45 (PoE PD support)
Physical Layer - 10/100/1000 Base-T (IEEE 802.3)
Data Rate - Rate 10/100/1000 Mbps (Auto-Sensing)
Interface - Auto MDI/MDIX
Mode - Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna - Fully Integrated and Internal Antenna
Standards - IEEE 802.11 b/g/n
Tx Power - 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)
Antenna - Fully Integrated and Internal Antenna
SIM Slot - 1
Software
Network Protocols - PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel - OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication - CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall - ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management - Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability - WAN Failover
Power Supply and Consumption
Power Supply - 1. DC Jack Connector for 9-24 VDC power supply
2. 1 × 802.3 af PoE input
Consumption - ≤ 4.2W
Physical Characteristics

Parameter Name	Parameter Value
Type	industrial IoT
Network	WiFi LoRaWAN 4G
Other characteristics	for sensors long-range
