The DomoJet is Sensus next generation single-jet dry dial meter with multiple communication possibilities and optimized design for sub metering application. The DomoJet water meter has a modular register; prepared to take an electronic communication module (e.g., Radio, M-Bus, Pulse and LoRa).

The two different versions of DomoJet are either suitable up to 50 °C as a cold water meter or suitable up to 90 °C as a hot water meter. Four different communication modules are available.

Domo R – Wireless M-Bus OMS radio module

The Sensus Domo R module adds wireless communication capabilities to the DomoJet. It is wireless M-Bus OMS generation 4 certified and 100% interoperable with OMS (Open Metering System) compatible systems and the Sensus DIAVASO Mobile App Suite. With an easily exchangeable battery and several alarm functions, the Domo R is an innovative and durable device with an IP67 certification.

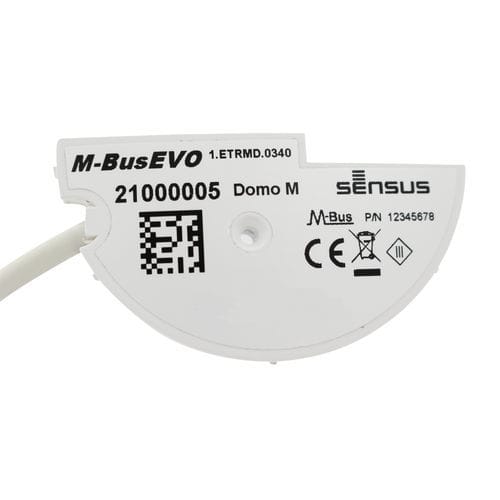

Domo M – Wired M-Bus communication

The wired M-Bus solution for the DomoJet meter is the Sensus Domo M module. Its built-in optical sensor and backup battery always ensure precise measurement, even if disconnected from the network. The Domo M works with standard wired M-Bus and transmits information on historical readings, backflow alarms and suspected water losses.

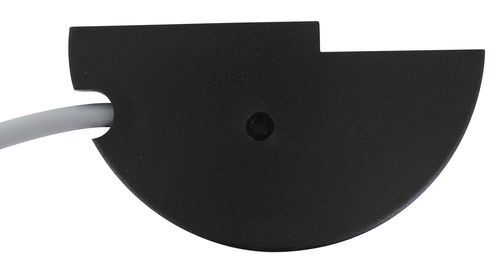

Domo P – The pulse output module

The Domo P module is an opto-electronic pulse generator for the DomoJet and 3rd party water meters with standardized Modularis interfaces. The optical sensor determines the direction of the flow and provides one pulse per 10 litres.

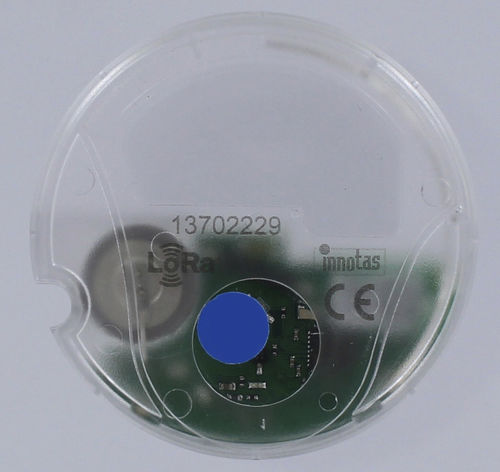

Domo L 868 MHz LoRaWan Module

Domo L is a radio module with an integrated, bidirectional, inductive sensor.

Parameter Name	Parameter Value
Options	LoRa
