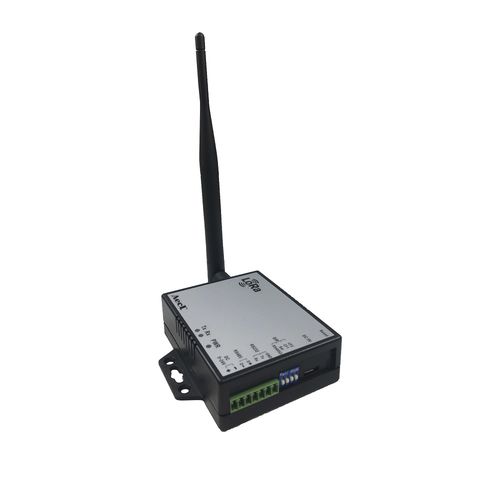

Aecl AUS-401 LoRa Master Gateway
AUS-401 LoRa Master Gateway is used together with Aecl LoRa air quality sensors as well as the RS485 to LoRa converter to create the internet of things and accelerate the adoption of the IoT network in a simple and economic way. Besides, the transmitted data from AUS-405 RS485/RS232 to LoRa Converter is well-encrypted and meets the AES128 Encryption standard. Perfect applications are HVAC System, building management system, agricultural automation and smart storage.
[Features]
● Signal output: RS485/RS232
● LoRa Chip: Semtech SX1272
● LoRa Frequency: 862 ~ 932 MHz (The frequency channels will be differed by country and this frequency can be configured accordingly from 862 to 932Hz.)
● Communication distance: 2 ~ 5 KM (Communication distance would be varied based on the environment)
● Frequency accuracy: ± 10 KHz
● Power supply: 5 ~ 24VDC Terminal Block or 5V Micro USB (Alternative)
● Dimensions (mm): 27.0 (W) x 89.3 (H) x 69.3 (D)
● IP rating: IP30
● Certifications: CE and FCC
[Applications]
● Commercial building / office / meeting room
● Residential house
● Classroom
● Library
● Museum
● Indoor places where required to build up the Internet of Things
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Other characteristics |
|
