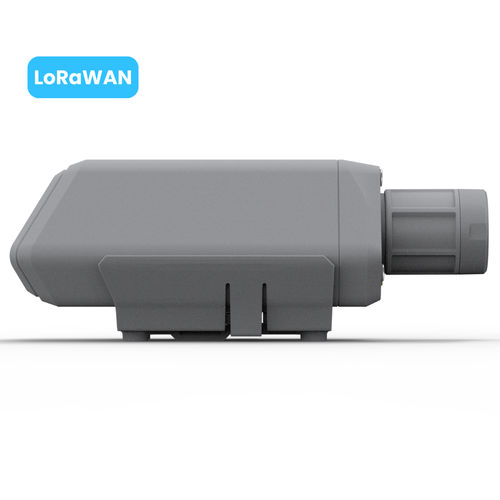

SensNode-LR-DL LoRaWAN® Data Logger Analog / I2C / UART / RS485
SensNode-LoRaWAN Data Logger can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply.
LoRaWAN® Technology
LoRaWAN 1.0.3 Class A, Class C
Ultra Low Power Consumption
Up to 10 years of battery life
Compatible with Worldwide LoRaWAN® Networks
Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
Simple Configuration
SensNode-LR series provides a no-code experience that enables users to finish configuration with 4 steps
Designed to Use in Harsh Environments
-40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
High Accuracy LoRaWAN Data Logger Sensors
High quality and durable sensors suitable for indoor and outdoor environments with high resolution.
RS485: Support standard RS485 Modbus-RTU protocol
Analog: 2 x 0~10V or 2 x 4~20mA.
GPIO: 1 x GPIO, collect level or pulse signal
Current Input - 4 to 20 mA (2 channel)
Microcontroller: Wio-E5
Operating Humidity 0 to 100 %RH (non-condensing)
Battery Life - Up to 10 years
IP Rating - IP66
Max Transmitted Power 19dBm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Connector type |
Bluetooth, Modbus, RS-485, LoRa
|
| Sensor type |
Pt100, NTC, SDI-12
|
| Display |
without display
|
| Other characteristics |
|
