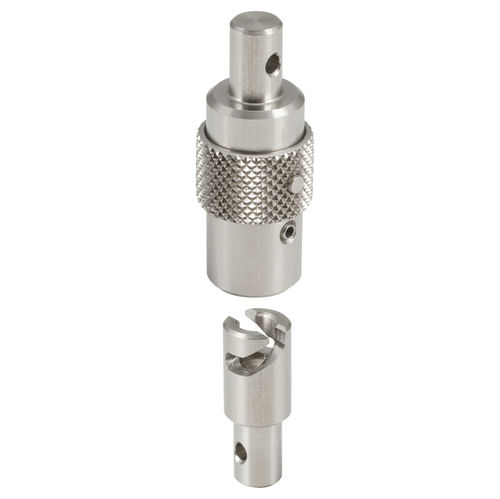

Locking device shaft coupling QCSJLK

Locking device shaft coupling QCSJLK

Locking device shaft coupling QCSJLK

About


SHAFT COUPLING CLAMP WITH SAFETY LOCK

One-Touch Fasteners are quick release fasteners for frequent changeover of machinery or fixture.
Quick and easy tool-less clamping reduces setup time in changeover.
IMAO's quick release fasteners are available in various clamping styles, quarter turn fasteners, ball locking fasteners and pin holding fasteners.

- Feature -
Safety lock for axial & rotational force
Multipurpose coupling element
Easy to clamp/unclamp by turning 90°

- Technical Information -
Shear strength: 2000N
Tensile strength: 1200N
Allowable Torque: 10N・m
Allowable Bending: Moment 15N・m
Runout Angle: Max. 0.9°
Heatresistant Temperature: 180 degrees celsius

-Materials-
Body/Collar: SUS303 stainless steel
Pin: SUS420J2 stainless steel
Spring: SUS304WPB stainless steel



PARAMETERS

Parameter Name Parameter Value
Type
locking device
Product applications
for shafts
