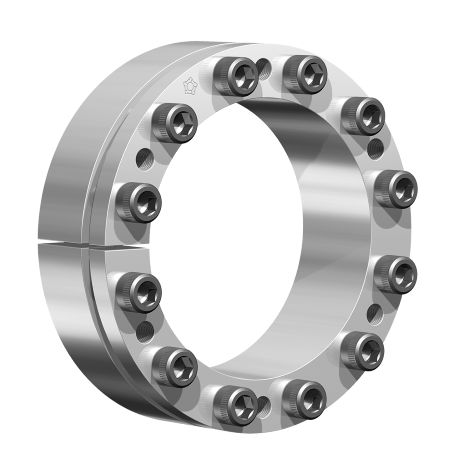

Two piece design with slit and single taper and without flange can be completely recessed within a component’s hub. Axial position of component not fixed and may move during installation.

Characteristics
Self-centering, two piece low-cost locking assemblies, which can be used - due to the slit - also at larger tolerances. The hub slightly positions during mounting towards the screw head. For disassembly only few release screws are required. Through optimised geometry of the flange, the deformation of the flange is significantly lower than with standard products.

Explanations

L = Overall width
L1 = Overall width (without screws)
L3 = Clamping length
d = Inner ring diameter
D = Outer diameter

Parameter Name	Parameter Value
Type	locking device
Other characteristics	self-centering
Installation system	flange
Torque (Nm)	635 - 635 355 - 355
