With a lineup from small diameter shafts, it can be used for a wide range of shaft tolerances. (Other than KE-KP )
・Designed to suit a wide range of shaft tolerances Standard models can accommodate plus shaft tolerances of servomotors, etc.
・Suitable for small hub applications with the small inner-to-outer diameter ratio. Compact design is possible.

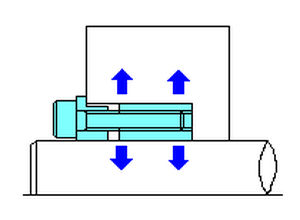

※With self-centering function. No need for the hassle of machining on hubs for guide portions.
※There is no hub movement when assembling.

Standard package

・Suitable for locking small stepping motors and servo motor output shafts with a range of small diameter sizes.
・Simple structure with a small number of parts and excellent cost performance.

Stainless Steel Package

・The main unit is made of highly anticorrosive austenitestainless steel.
・Special lubrication coating is applied to the locking bolts, so no additional lubrication is necessary during assembly.
・Since it is designed to suppress the generated surface pressure while having a higher transmission torque than other companies' products, it can also be used for small diameter hubs.
In addition, the number of locking bolts is also small, and the assembly man-hours can be reduced.
・As with the KE series, standard products can be used for plus tolerance shafts such as servo motors.

Parameter Name	Parameter Value
Type	locking device
Product applications	for shafts
Other characteristics	compact self-centering friction
Installation system	flange
Torque (Nm)	900 - 900 5 - 5
