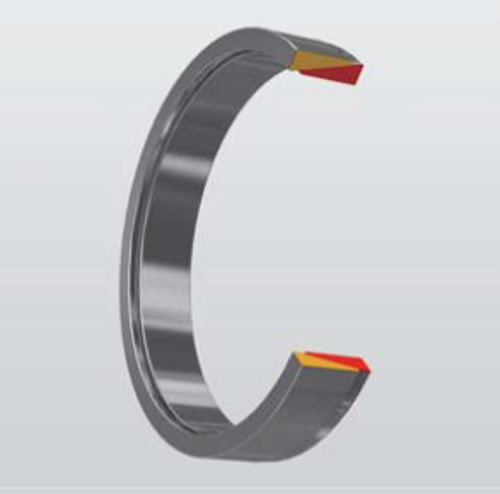

The simplest element type allows for optimal design.
・Compact and lightweight. Requires a minimum of installation space.
※The pressure flange, pressure sleeve, and locking bolt must be prepared by the customer.
※Outering pressurize is basic. In this case, there is no hub movement during assembly.
※It does not have a self-centering function, so it is necessary to provide a guide part on the hub.

Standard package

・You are free to select the tightening of bolts and number of EL Power Rocks to be installed, so various design configurations are available depending on the required locking force.
・The complete ring shape design offers excellent dynamic balance.
・Provides superior cost performance and fit for applications requiring many Power-Locks.
・Many manufacturers are available both domestically and abroad, and this series is highly compatible.

Parameter Name	Parameter Value
Type	locking device
Product applications	for shafts
Other characteristics	compact self-centering friction
Installation system	flange, sleeve
Torque (Nm)	500 - 500 6.9 - 6.9
