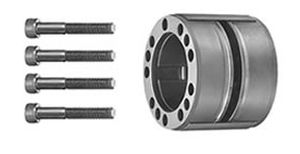

High torque transmission capacity type
・Capable of transmitting 1.5 to 3 times the AS Series rated torque capacity.
※With self-centering function. No need for the hassle of machining on hubs for guide portions.
※There is no hub movement when assembling.
※Careful work is required for assembly and removal. Please refer to the video for details.

Standard package

・Designed with the same inner and outer diameters as the AS Series, you can use fewer units of the AD-N Series to replace AS Series units.
・Only Tsubaki products are available from Φ19. Large capacity torque transmission for small diameter shafts should be left to.

Electroless nickel plated

・The units are plated with peel-proof electroless nickel.
・The locking bolts have a special surface treatment with lubricating effect, so no additional lubrication is necessary during assembly.
・The dimensions and transmission torque are the same as the AD-N standard specifications. No torque reduction.
・Suitable for applications requiring large capacity torque, such as for fixing bogie wheel shafts in a clean room.

Parameter Name	Parameter Value
Type	locking device
Product applications	transmission for shafts wheel
Other characteristics	torque shaft-hub self-centering large high-torque
Installation system	flange
Torque (Nm)	382 - 382 0 - 0
