HoistSense+ is an advanced electronic system that constantly keeps track of usage, load and critical incidents; while using this information to the advantage of the user to fuıther increase the effîciency and decrease the downtime of the hoist. Here is why it’s a GREAT option to consider for your crane:

• Remaining safe working period (SWP) of the hoist.
• Current load on the hook.
• Total number of overload incidents.
• Total running time of the hoisting motor.
• Main load.
• Load spectrum (Light Medium, Heavy, Very Heavy).
• Total number of starts.
• Time to next maintenance (Depending on the usage - Dynamic).
• Duty.

Real-Time Monitoring
• PermanentSWP (Safe working Period) calculation.
• Physical sensors on brake-linings checking for wear on the brake-pads
• Up-to-date information about the remaining duration of service.
• Comply with the regulations.
Increased Efficiency
• With UltraSpeed function enabled, HoistSense+ increases nominal speed on all motions when the load is below certain set amount of the
SWL.
Safe Working
• Continuous overload protection with precisely calculated strain gauge load measuring system.
• Continuous overheat protection of electric motors and control panel
Load-Sharing
• HoistSense+ can share data with other HoistSense+ up to 3 via ModBus.
Slack Rope Supervision
Informative Display

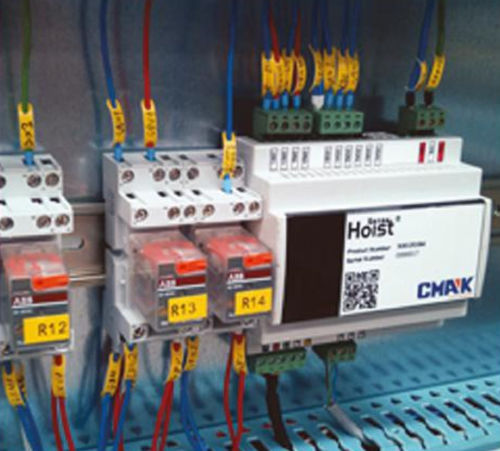

• With its display mounted on hoist, the HoistSense+ informs the operator and maintenance crew for critical information
Weighing Display
• Real-time display of the loads via strain gauge sensor.

Service Optimization
• Available alarms for preventive maintenance periods.
• Tracking of past maintenances.
Easy to Use

Parameter Name	Parameter Value
Type	load
Applications	for overhead cranes
Interface	Modbus
Other characteristics	real-time
