Compact lifting column for more space beneath the table

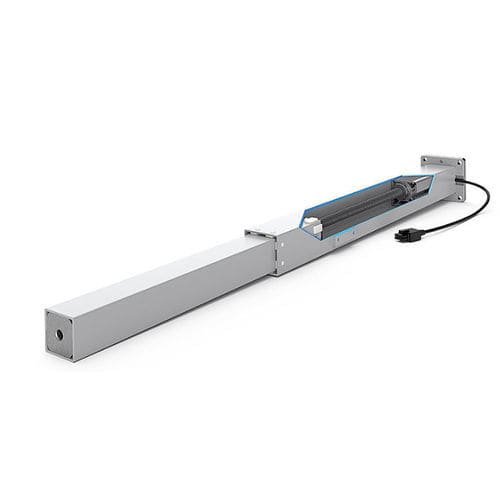

The spindle lifting column SE is a very compact lifting column made of steel with a cross section of 50 x 50 mm. Because of its small mounting size there is a lot of space under the table top and room for substructures. With a lifting and pulling load of 1500 N per lifting column, sturdy 4-legged workbenches with a lifting load of 600 kg can be realized. The spindle lifting columns can be ordered individually or as a complete table base frame. Ideal for workbenches, assembly tables and tables for watch makers.

When using two control boxes with a synchronous cable, up to 8 lifting columns can be operated in parallel mode.

Parameter Name	Parameter Value
Electrical characteristics	load
Other characteristics	compact
Force (N)	1250 - 1250
Stroke (mm)	300 - 300
