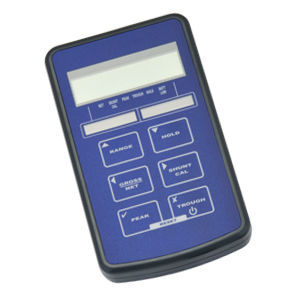

The 7561-PSD is a completely portable, strain gauge/bridge-based, battery-powered indicator packaged in a small, robust IP65/NEMA 4 enclosure. For simplified use, the operator only has access to six keys. Two separate ranges are available that enable the instrument to read and display two units of measure. The menu options offer the ability to tailor the instrument̵7:s response to the application. Gross, net, peak and trough (valley) measurements are easily selected. An annunciator indicates which range has been selected. There is also a window to insert a legend describing each range. Once these parameters are set, it provides the user with the simplest of indicators.
Features

Powered by two AA internal batteries
Portable, handheld precision instrument weighing only 250 g
Tactile keyboard, with dual-range selection, peak/valley hold, gross/net, and on/off controls
Microprocessor based, allowing single-pass calibration facility
Dual range facility
Accepts an input range of up to 50 mV/V
Environmentally sealed to IP65/NEMA 4
7½ digit LCD display, with battery, peak, trough, net, error, and shunt cal indication
One-year warranty
Auto sleep

Parameter Name	Parameter Value
Measured value	load
Display	digital
Type	handheld
Applications	for strain gauges
