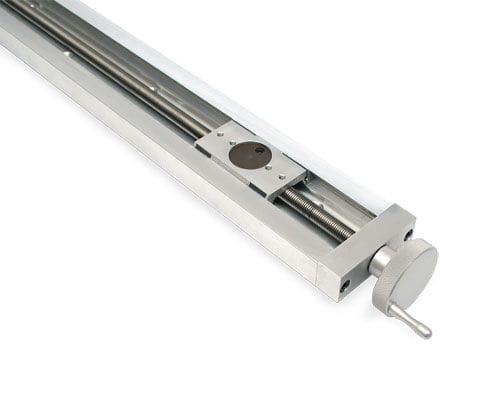

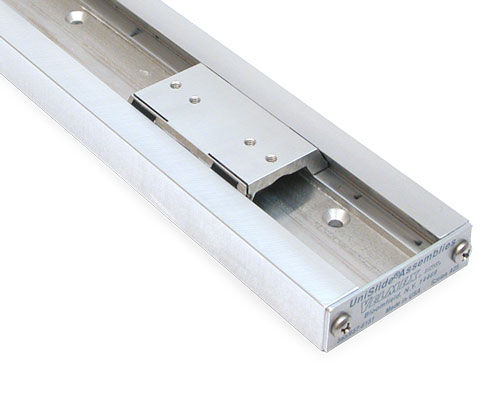

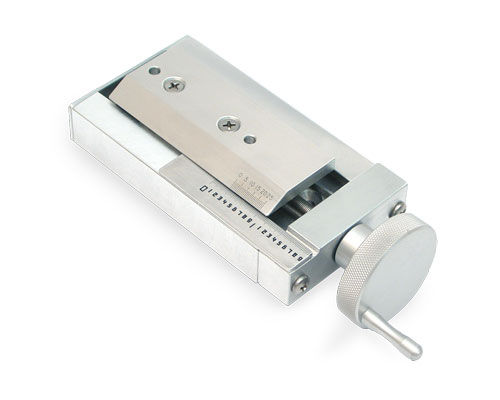

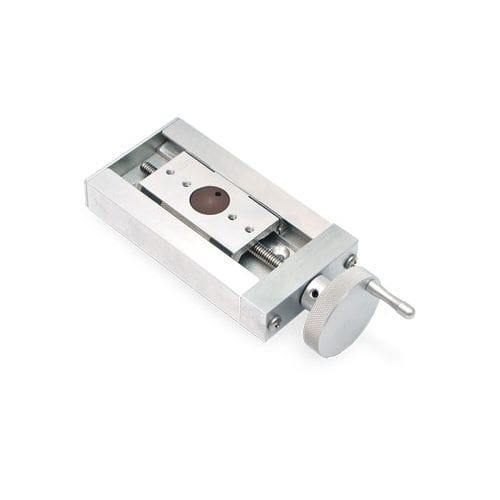

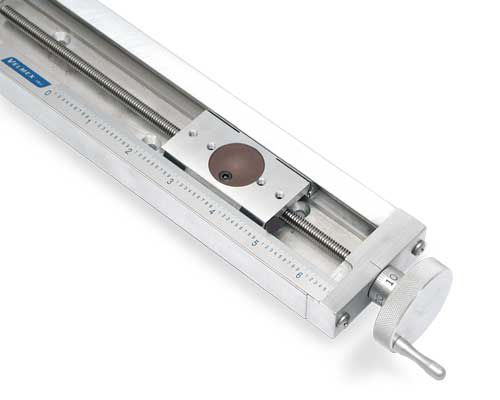

The A25 Series UniSlide stage has a body width of 2.5 inches, slider length of 2.5 inches and can carry a 30 lbs. horizontal load. The A25 can travel up to 24.5" with the 2.5" slider/carriage.

A25 Series UniSlides are comprised of an aluminum alloy extruded dovetail base with 60 degree opposing V-type ways. An aluminum alloy carriage that runs in the dovetail ways of the base. A25 lead screws are constrained and supported with pre-loaded Delrin® thrust bearings, which have pre-loaded ball bearings. The lead screw drive nut is a tension adjustable nut made of Delrin providing low friction, and minimal backlash.

The A25 Series UniSlide is available in 10 models/styles. Seven lead screw pitches are available along with rapid advance configurations.

Parameter Name	Parameter Value
Orientation	linear, XY
Type	manual
Number of axes	2-axis
Other characteristics	aluminum dovetail rapid advance sliding
Load (kg)	13.6 - 13.6
