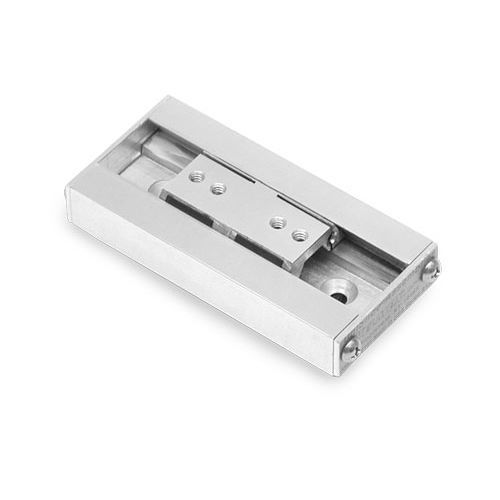

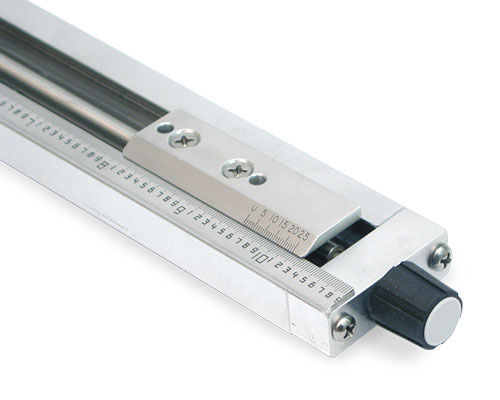

The smallest of the UniSlide Linear Stages with a body width of 1.5 inches, slider length of 1.5 inches and a carrying capacity of 15 lbs. horizontal load. The A15 can travel up to 25.5" with the 1.5" slider/carriage. Because of it's light weight, the A15 Series is ideal for moving small sensors.

A15 Series UniSlides are comprised of an aluminum alloy extruded dovetail base with 60 degree opposing V-type ways. An aluminum alloy carriage that runs in the dovetail ways of the base. A15 lead screws are constrained and supported with pre-loaded Delrin® thrust bearings, which have pre-loaded ball bearings. The lead screw drive nut is a tension adjustable nut made of Delrin providing low friction, and minimal backlash.

The A15 Series UniSlide is available in 8 styles. Four lead screw pitches are available along with rapid advance configurations.

Parameter Name	Parameter Value
Orientation	linear, XY
Type	manual
Number of axes	2-axis
Other characteristics	precision aluminum dovetail rapid advance sliding
Load (kg)	6.8 - 6.8
