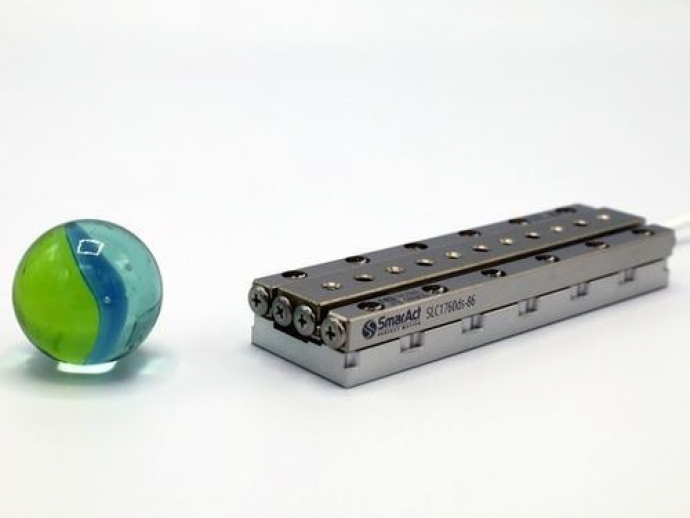

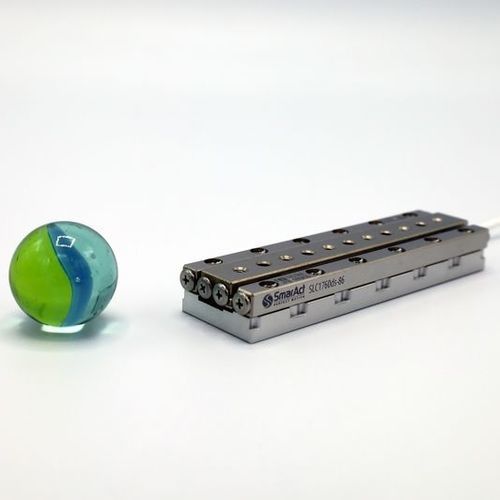

At dimensions of 60 x 17 x 8.5 mm, the SLC-1760 offers a travel range of 41 mm and a normal force of 30 N.
Please note that the downloadable documents for this linear piezo stage show the dimensions and specifications of an SLC-1760 for atmospheric or HV environments, equipped with an S-position sensor. For technical drawings and detailed specifications of other variants, such as UHV compatible stages, stages with higher blocking force or other sensor options, please contact our sales team.
Mechanical
Blocking Force [N]≥ 3.5
Max. Normal Force [N]30
Max. Lift Force [N]> 1.5
Dimensions [mm]60 x 17 x 8.5
Weight [g]38
Open-loop
Resolution [nm]< 1
Options
Material Options - Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK)
Mechanical Options - U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z)
Performance Options - Higher blocking force (-D): +1.5 N
Cryogenic Option - Yes (only open-loop)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Orientation |
linear
|
| Type |
piezo
|
| Number of axes |
1-axis
|
| Other characteristics |
|
| Stroke (mm) |
41 - 41
|
| Speed (mm/s) |
20 - 20
|
