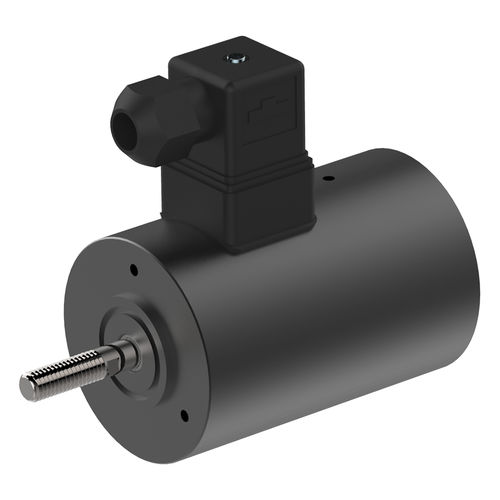

Industrial solenoid
Linear industrial solenoid for heavy work and long life. Custom made solenoids are available on request.

Specifications
Operation pull / push
Preferred rated voltage 24VDC (max. 230VAC)
Class of insulation B (130°C) DIN VDE 0580
Test voltage EN 60664-1
Surge category III

Degree of protection
Lead wire W IP20 (IEC 60529)
Plug and socket connection S IP40; max. IP65 (IEC 60529

Electrical termination Lead wires (300mm), AWG20 Plug and socket connection DIN-175301-803
Surface treatment black varnished
Moving mass 0.060kg

Notes
1) Solenoids manufactured and tested according to DIN VDE 0580
2) Forces indicated measured at 20°C ambient and operating
temperature with 90% of its rated voltage, in horizontal position
3) Force values for reference only and can differ
±10% as a result of natural dispertion
4) Special designs are available
5) All specifications subject to change without notice
6) Compliant with RoHS; free of halogenes (PVC)
7) Our „Technical Explanations“ provide information about the use of
solenoids as well as to general installation and safety instructions

Parameter Name	Parameter Value
Type	linear
Other characteristics	custom IP20 IP65 industrial pull push with spring return
Voltage (V)	24 - 230
Force (N)	9 - 91
Stroke (mm)	8 - 30
