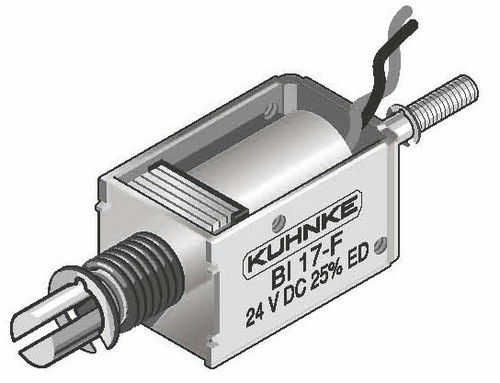

The Bistable Solenoid, developed by Kuhnke Solenoid Technology, is 90% made to customers specifications. It comes with 800 V test voltage, 11 ms drop-out time, 22 ms actuation time (ED), 9.5 W nominal coil power Pn, and lying leads 10 cm coil terminals. The unit is also equipped with insulation group according to VDE 0110 C 75 directive requirements with E thermal stability at 120 °C maximum working temperature. In addition, the framework is supplied with approximately 12 g armature weight, approximately 46 g complete solenoid weight, and 24 V DC voltage.

Parameter Name	Parameter Value
Type	linear
Other characteristics	bistable
Voltage (V)	24 - 205
Force (N)	0.18 - 12
