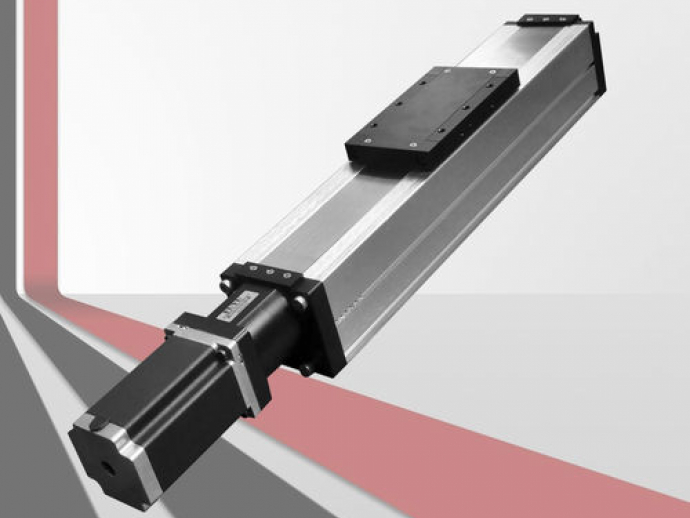

Dust Water Proof Enclosed Ball Screw Linear Module
Technical Feature
FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.
Range of Application
It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.
Series: FSL80
Stroke Range: 50mm-1200mm
Position Accuracy: 0.02mm
Max Speed: 220mm/s
Max Load: 40kg
Ball Screw: G1610
Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Huge Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
custom OEM Solutions
Value-Added Services
FUYU Technology is a Linear Robotic Manufacturer and established in 2011.
Multi-axis Positioning System can be composed of several linear modules for customized Stroke, Precision, Speed and Load Capacity. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.
As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 12 hours to suggest the best solution for the linear gantry robot.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Orientation |
linear
|
| Type |
|
| Number of axes |
|
| Other characteristics |
|
| Stroke (mm) |
50 - 1200
|
| Speed (mm/s) |
60 - 220
|
| Repeatability (mm) |
0.02 - 0.02
|
| Load (kg) |
20 - 40
|
