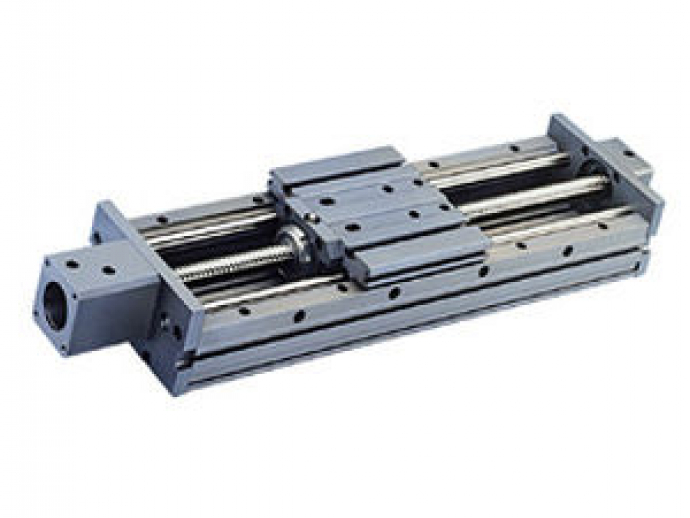

2RB (SuperSlide) Linear Tables
Thomson's 2RB (SuperSlide) positioning slides are continuously and intermittently supported systems with integral screw assemblies in both metric and english standard units. Based on Thomson's Round Rail technology, these units work well in applications where moderate stiffness and rigidity are required.

2RB Linear Table Feature Highlights:
• Pre-aligned and continuously supported LinearRace ways
• Super Smart Ball Bushing bearing
• Integral ball screw assembly
• T-slot Carriage with four mounting holes
• Speeds up to 1000 mm/sec
• Thrust loads up to 3000 N
• T-slots in base mounting system
• Long travel life capability
• Double acting wipers

2RB Linear Table Option Highlights:
• Lubrication system
• Bellows way covers
• Limit switch packages
• Radial mount ball screw shaft extenders

Parameter Name	Parameter Value
Orientation	linear
Stroke (mm)	1951 - 2815
Speed (mm/s)	470 - 730
