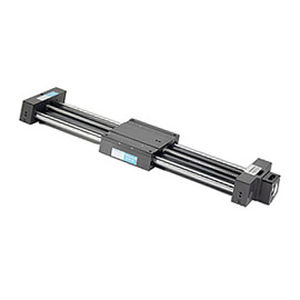

2DB (SuperSlide) Linear Tables
Thomson's 2DB (SuperSlide) positioning table is a continuously supported system designed for rigid applications moving medium to heavy duty loads. The table comes from the factory pre-aligned and preassembled for immediate installation with mounting screws through the base. An integrated ball or lead screw assembly with standard NEMA motor mounting is supported in a dual LinearRace® Rail package.
2DB Linear Table Feature Highlights:
• Integrated dual-rail, webbed shaft ideal for loading in all orientations
• Low-profile height
• Super Smart bushings with low friction for smooth motion
• Easy mounting
• Corrosion resistant options available
• Optional bellows
• RediMount kit included
2DB Linear Table Option Highlights:
• Modular carriage w/four open Pillow blocks
• Spring set brake
• Shaft types: 60 Case, stainless steel, chrome plated, armoloy
• Corrosion resistance
• Protective bellows
• Home/End limit switches
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Orientation |
linear
|
| Number of axes |
1-axis
|
| Other characteristics |
ball
|
| Speed (mm/s) |
8300 - 10000
|
