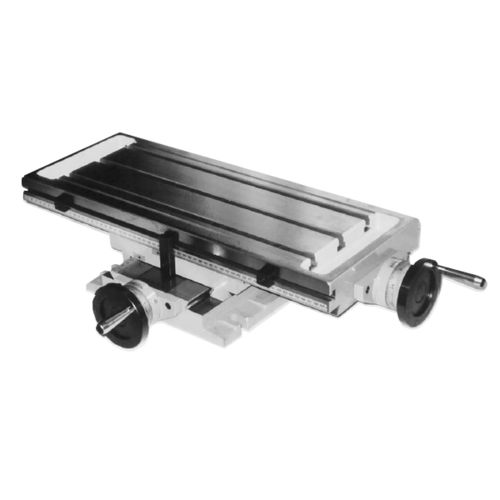

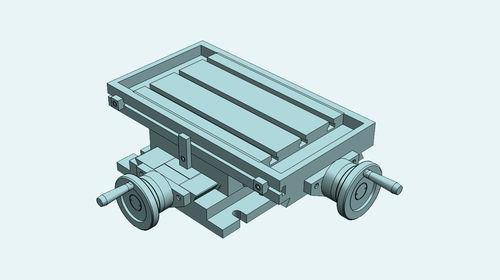

Fixed double axis crosstable, designed to be used on drilling, milling, pad printing machines, special transfer assemblies and in any mechanical application in which XY movement has to be controlled and adjusted. DRILLING equipment: slots for cooling collecting, handwheel with large diameter, longitudinal enstops and telescopic protecction guides for transversal spindle

All elements in stabilized cast iron GG25. All surfaces with grinded finishment. Millimetered rules in XY. Vernier/nonuis matt chrome. Dial, with zero setting. Spindle with trapezoidal thread. Adjustable spindle nut. Standard lock in XY(M6 screw to block the dovetailed guides in working position). Coolant drainage box. Telescopic steel protectors . X-end travelling stops.

Parameter Name	Parameter Value
Orientation	linear
Type	manual
Number of axes	2-axis
Other characteristics	sliding
Stroke (mm)	160 - 240
