Precision-class linear stage

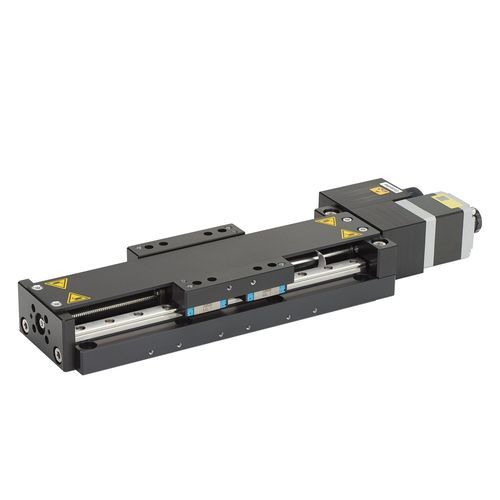

The L-836 linear stage series with precision ball screw is suited for industrial applications that require high performance in compact design. High-performance is achieved by high resolution stepper motors, high precision cross roller bearings, and precision linear encoders. The optional foldback allows the motor to run along side the stage reducing overall footprint of the system.

Pioneering design

The L-836 offers unique options in order to select the appropriate stage for high resolution, high repeatability, high speed with small footprint requirements.

Stepper motors and digital linear encoders

High resolution 2-phase motors offer 5-phase stepper performance without the need for expensive and limited choice of drive electronics. Longer stroke stages achieve even higher speeds. Additional linear encoders provide high repeatability during operations.

Options

Digital incremental linear encoder

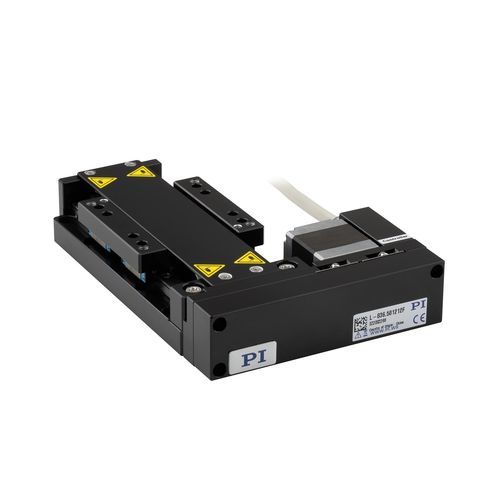

Stepper motor, with foldback option that reduces the overall length
Optional accessories: Adapter bracket L-836.APx

Application fields

Laser materials processing, test & inspection, electronics manufacturing, optical cable manufacturing, optics assembly, quantum photonics, silicon photonics. Advanced manufacturing, additive manufacturing.



PARAMETERS

Parameter Name Parameter Value
Orientation
linear
Type
linear motor-driven
Number of axes
multi-axis
Other characteristics
  • compact
  • ball screw
Stroke (mm)
25 - 200
Speed (mm/s)
40000 - 80000
