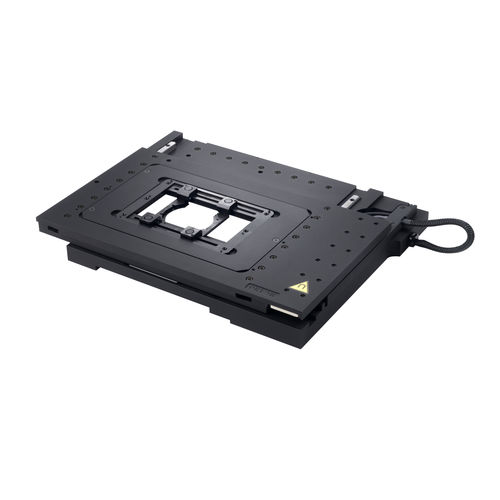

The HLD117 series of flat top stages with linear motor technology for inverted research microscopes set new standards for convenience and performance. Designed to seamlessly integrate with other items such as micromanipulators and incubation chambers, the top surface of the stage is completely free of obstruction. This provides a highly ergonomic platform with exceptionally easy access to the sample area. The HLD117 incorporates constant contact bearings giving the lowest friction and smoothest drive available.

The HLD117 offers:

Ultra Quiet Operation
Can you hear that? Neither can we! Even at high speeds (up to 300 mm/sec) the linear DC servo motors are almost silent.

The Highest Precision
With an impressive 0.15 micron repeatability and 50 nanometer linear scales, the HLD117 is the best microscope stage on the market today.

Low Profile Design
The low profile flat top design allows ample room to access microscope adjustments.

Parameter Name	Parameter Value
Orientation	linear
Type	linear motor-driven
Number of axes	2-axis
Other characteristics	high-accuracy for microscopes
Stroke (mm)	72 - 120
Speed (mm/s)	300 - 300
