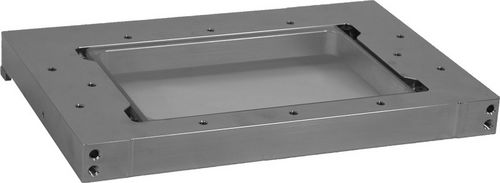

These coordinate stages can be used for optical comparators, vision systems or microscopes. Dorsey offers fully motorized or manual comparator stages. These stages allow adjusting the position of inspected part. Inspected elements mounted on stage are resistant to external vibration providing more accurate results.
Features:

High precision solid rail crossed roller bearings
Hard nickel plated surfaces
Fixturing holes with universal spacing
Quick release on both axes of all manual stages
Static axis bias on stage drives increases accuracy
Universal mounting options fit many existing systems
Choice of scale resolutions
Motorized versions available with stepper or servo motors
Motorized versions available with slip clutches or limit switches
Accuracy formula +/- .004 +[(L/20).001]
NIST traceable calibration certificate
2 Year Warranty

Parameter Name	Parameter Value
Orientation	linear, XY
Type	motorized
Number of axes	2-axis
