LL10

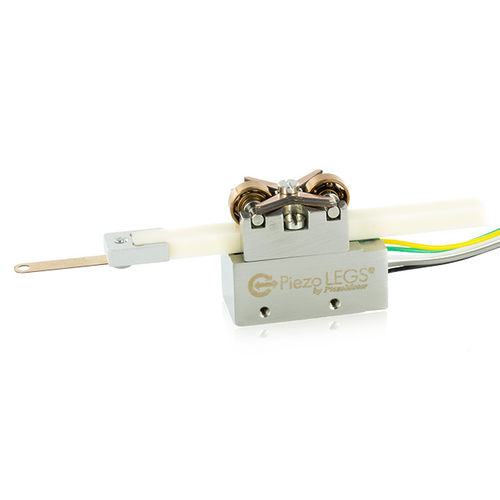

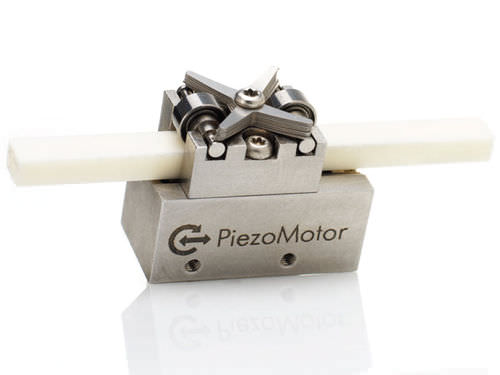

Linear motor: A compact motor that has a stall force of 6.5N. It has direct drive with no backlash and can microstep in the sub-nano millimeter range. Does not come with built-in encoder but the motor comes as three different versions. Standard stainless steel for normal environment, a vacuum version and a non-magnetic vacuum version. Full force power-off locking is a safety function inherent to the design.

Also designed for vacuum and non-magnetic environments.

This is a motor that has been replaced by the successor LL06.

We will not allow this to be designed for new applications. Customer looking for a replacement for a standard LL10 are recommended to use LL06 and customers looking for replacement for vacuum and non-magnetic version we propose LT20.

Parameter Name	Parameter Value
Movement	linear
Other characteristics	high-force non-magnetic zero-backlash
Speed (mm/s)	0 - 15
Stroke (mm)	80 - 80
Force (N)	0 - 7
