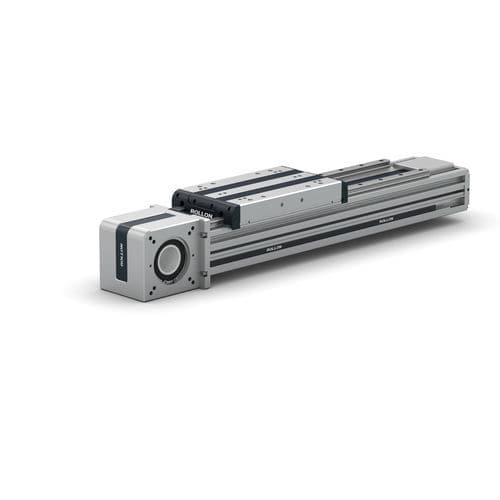

Rigid and "self-supported" linear unit

The Essential
• Movement provided by two linear recirculating ball guides and a toothed belt
• Linear unit made to order with customized stroke
• Technical file with calculation notice supplied on request
• To be reserved for “single-axis” type configuration with high load, moment and work rate.
• Possibility to position the unit on edge or flat
• Belt and pulleys protected by a polyurethane protective band guided by bearings
• Rigid self-supporting structure due to the rectangular cross-section of the aluminium profile
• Optional double carriage configuration driven by the same belt
• Version 2C equipped with two independent mobile trolleys
• Quick and easy mounting of the gear unit directly in the drive head by means of an expanding hub
• Useful accessories: reducers and mounting kits, sensor suppor

Parameter Name	Parameter Value
Operation	linear motor-driven
Type	belt-driven
Other characteristics	guided
Stroke (mm)	5800 - 6000
