TrackMotion Floor TMF
Linear drive axes for robots

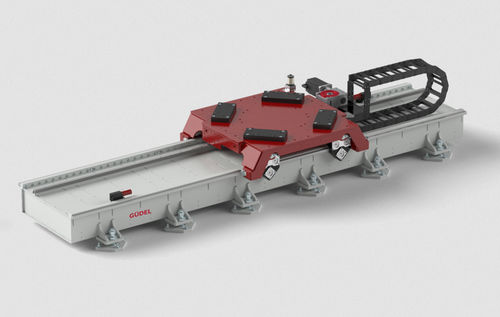

The TMF can move robots weighing up to six tons. The robot transport unit boasts excellent stability and dirt resistance. It easily absorbs the dynamic fundamental loads of articulated robots in every direction. Thanks to its high degree of rigidity, the TMF runs quietly and spreads loads well, even in emergency stop situations. To achieve this, the guides have been precisely fitted into the closed, welded beam system. Another advantage is that the rollers can easily be adjusted from the outside. The TMF will bring precision and efficiency to your production processes.

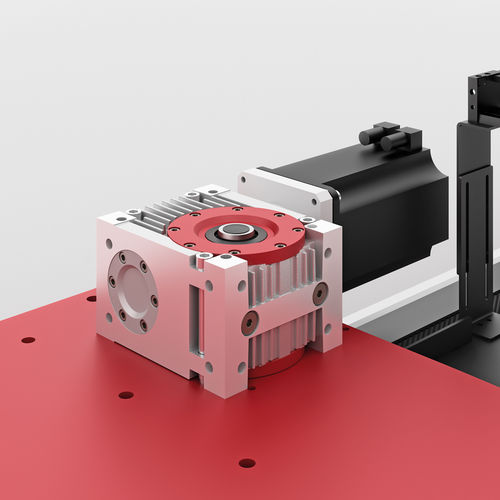

FOR HIGH DYNAMICS AND HEAVY LOADS
Due to the carriage unit's high degree of rigidity, the Güdel Trackmotion Floor TMF easily absorbs the dynamic fundamental loads of articulated robots in all directions.
The guide rollers, placed laterally and orthogonally, permit the greatest possible dynamics for the smallest frame size.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
linear motor-driven
|
| Type |
rack-and-pinion
|
| Other characteristics |
|
| Stroke (mm) |
98450 - 98450
|
| Speed (mm/s) |
2625000 - 3376000
|
| Force (N) |
12000 - 200000
|
