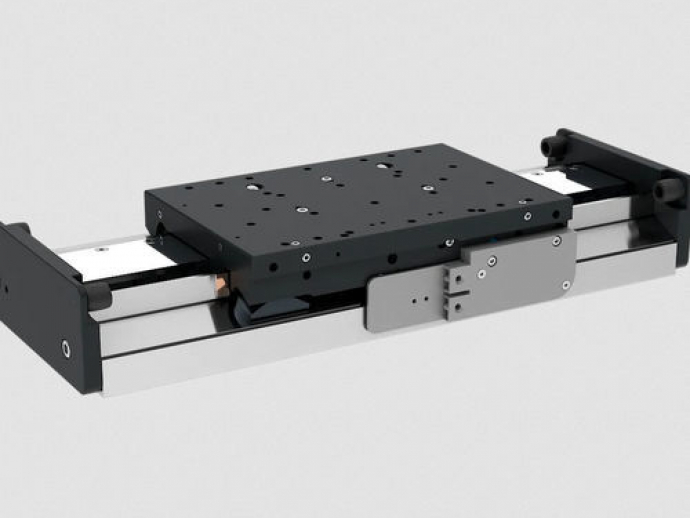

The EZ-2542 Linear Axis is designed for loads of up to 200 N. A key feature of the axis is the angular arrangement of the air-bearing surfaces, which enables the very compact design. The slide is magnetically preloaded and dynamically driven by a Tecnotion UM9 N linear motor. The standard version uses an incremental measuring system from RSF, absolute measuring devices from Renishaw or Heidenhain (LIC) are optionally available. The aluminum rail (hard anodized) is available in 3 standard lengths, customized lengths can be supplied upon request. To realize simple cross tables, two axes can be stacked on top of each other.
Applications: Electronics manufacturing, PCB manufacturing, inspection technology, non-contact 2D measurement, sensor and camera positioning for inspection, AOI (automatic optical inspection), automation processes.

In general: Applications with high demands on dynamics, precision, repeatability, uniform scanning movements and short settling times.

Parameter Name	Parameter Value
Operation	linear motor-driven
Other characteristics	precision aluminum compact standard automatic
Stroke (mm)	150 - 250
Speed (mm/s)	0 - 2000
Force (N)	66 - 66
