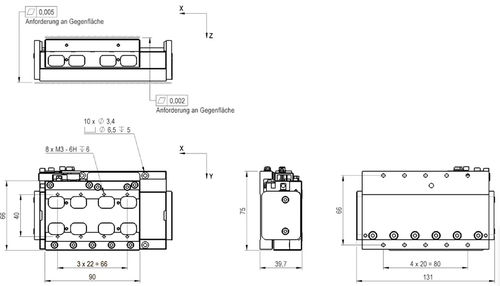

Highly integrated construction and compact design make the axis versatile for high-precision positioning tasks with limited installation space. Despite its compactness, the axis offers good load capacities and tilting moments. It can also be installed in upright position or lying on its side. The linear axis is designed for small to medium-sized strokes with loads up to 30 N. The hard-coated aluminum slide is dynamically driven by a Tecnotion UC3 motor. Preload is achieved by magnet groups. The axis is equipped with an incremental measuring system from Heidenhain (LIK 21). The rail (chrome steel) is available in 2 standard lengths, deviating lengths on request.

Fields of application: Inspection technology, non-contact 2D measurement, sensor and camera positioning for inspection, electronics and PCB manufacturing, AOI (automatic optical inspection), automation processes.
In general: Applications with high demands on dynamics, precision, repeatability, smooth scan movements, short settling times.

Parameter Name	Parameter Value
Operation	linear motor-driven
Other characteristics	precision aluminum compact with positioning system standard automatic
Stroke (mm)	20 - 100
Speed (mm/s)	0 - 2500
Force (N)	8 - 8
