About

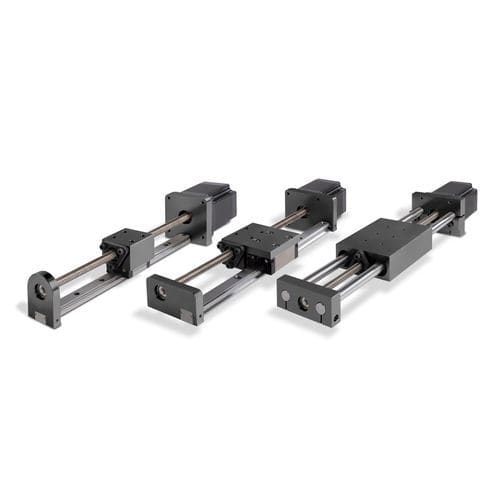

Thomson compact linear systems address the need for thrust and bearing support in a single, small-scale unit for space-conscious applications. Whether you opt for one of our three standard architectures or work with our engineers on a “from scratch” solution, your application requirements will determine the selection and sizing of your system components.

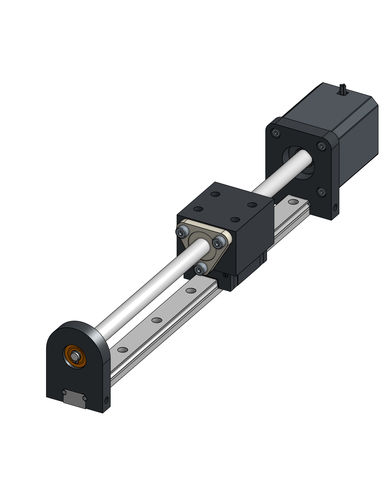

Narrow Configuration
This architecture allows for a smaller footprint by vertically stacking the screw and profile rail bearing.
Wide Configuration
This architecture allows for a shorter system height by horizontally arranging the lead screw and profile rail bearing.
Round Rail Configuration
This architecture uses a dual round rail guidance system, resulting in a cost-effective solution capable of withstanding high moment loading.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
linear motor-driven
|
| Type |
|
| Other characteristics |
|
| Stroke (mm) |
800 - 800
|
| Speed (mm/s) |
16.76 - 166.62
|
| Force (N) |
250 - 2000
|
