Manual adjusters domiLINE

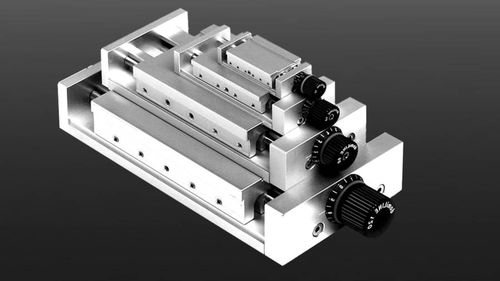

This adjustment slide system will meet any individual requirement. Every axis configuration is conceivable. Whether X-Y, X-Z, X-Y-Z or X-Y-Y-Y or, or, or...

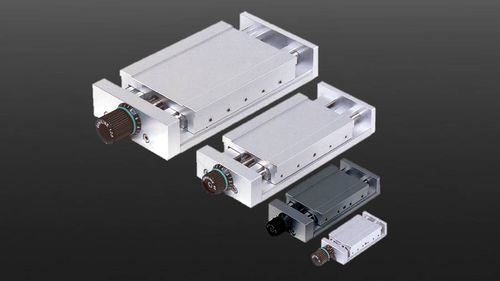

Four sizes

In order to cover the whole range of applications, 30, 50, 80 and 120 mm slide widths are available as standard sizes. Complete with spindle and ready assembled. Available in standard strokes or in customer-specific strokes.
Features

- easy motor assembly
- material hard anodised aluminium
-stainless model
- nonius adjustment
- high load ratings
- favorable friction values
- high-quality slideways
- low-play drive
- adjusting accuracy +/- 0.05 mm
- standardised axis lengths
- assembly in accordance with customers requirements
- simple ordering system

Parameter Name	Parameter Value
Orientation	linear
Type	manual
Number of axes	1-axis
Other characteristics	standard
Stroke (mm)	5 - 100
