Benefits:
• Designed for medical devices, compliant to IEC 60601-1
• Silent operation
• High push/pull force capability
• Synchronization capability

• Medical approved following IEC 60601-1
• Compatible control unit and operating devices available
• Back up nut as standard
• High safety factor

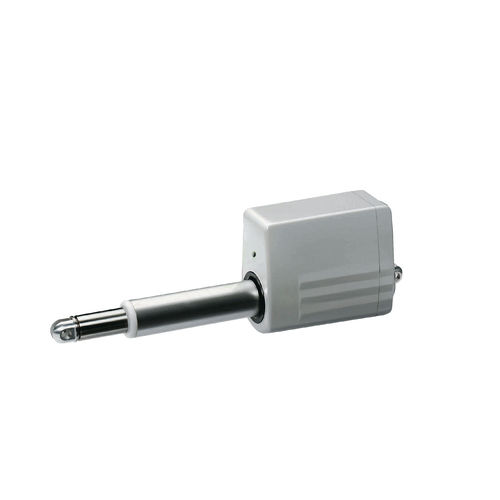

The Runner is a very compact and powerful linear actuator up to 12 000 N, targeting high load applications for medical devices. The series is medical approved and available with options such as anti pitching, incremental position feedback and emergency lowering. The system includes a single fault safe control unit for up to 3 actuators as well as corresponding accessories.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Motor	DC
Applications	for medical applications
Other characteristics	compact
Stroke (mm)	50 - 500
Force (N)	8 - 12
Speed (mm/s)	8 - 8
Ambient temperature	Max.: 40 °C (104 °F)Min.: 10 °C (50 °F)
