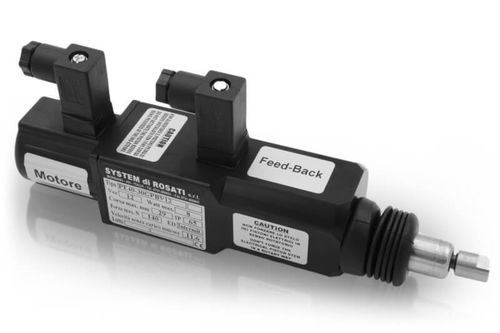

This new and highly reliable one-of-a-kind piston is equipped with potentiometric linear feedback that allows its stroke to be controlled in both directions and in a variety of ways:
– Proportional movement
– Scheduled steps
– Emergency interventions
Its compactness facilitates a wide variety of applications in many sectors in addition to the specific application on endothermic engines for the acceleration action.
Extensive tests including electromagnetic compatibility confirm the validity of the product.

Power supply = 12 – 24Vdc
PE40-30GP stroke = 29mm
PE40-25GE stroke = 44mm
Max. force = 140N
Translation speed (type A) = 5.8 mm/sec (no load)
Translation speed (type B) = 11.6 mm/sec (no load)
Double direction of travel
Built-in FEED-BACK for piston stroke control and management

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	piston
Other characteristics	compact control programmable
Stroke (mm)	29 - 44
Force (N)	140 - 140
Speed (mm/s)	10 - 10
Ambient temperature	Max.: 60 °C (140 °F)Min.: -5 °C (23 °F)
