Benefits:
• Compact and stylish design for medical devices
• Silent operation
• Complete system with control unit, operating devices and accessories
• Synchronisation capability
Features:
• Medically approved in accordance with IEC 60601-1
• Compatible control units, operating devices and accessories available
• Spindle supplied as standard
• Safety factor of up to 4 times

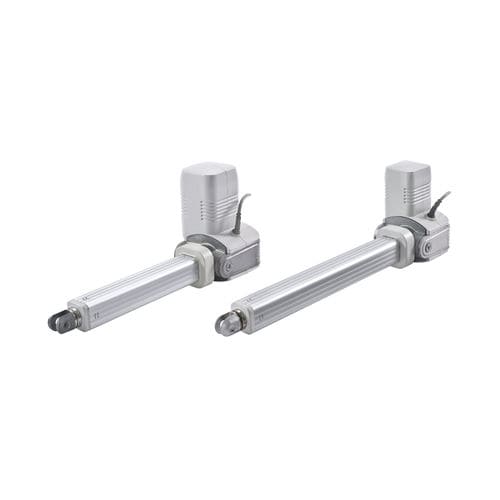

The MAX-1 and MAX-3 are powerful and very quiet DC linear actuators, take up little space and can be installed at virtually every angle in a vertical or horizontal position. The series is medical approved and available with options like anti pitching, incremental position feedback and emergency lowering. The MAX-1 and MAX-3 can be supplied as a full system with control, operating units and accessories using 24 VDC output voltage.
Case studies:
Herkules Liftwerk - Wheelchair lifting platfor
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Movement |
linear
|
| Type |
electric
|
| Motor |
DC
|
| Protection class |
IP66
|
| Applications |
|
| Other characteristics |
compact
|
| Stroke (mm) |
50 - 700
|
| Force (N) |
4000 - 8000
|
| Speed (mm/s) |
12.7 - 12.7
|
| Ambient temperature |
Max.: 40 °C (104 °F)Min.: 0 °C (32 °F)
|
