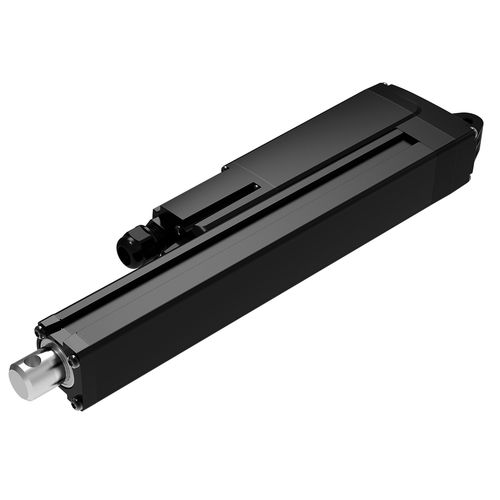

TiMOTION’s MA4 series electric linear actuator was specifically designed for heavy-duty applications and harsh working environments that require durability.

Applications suitable for the MA4 include agricultural equipment such as fertilizer, seed spreader, harvesters, grain handlers, combines, tractors…etc. Also, commercial and industrial applications include commercial lawn mowers, scrubbers, sweepers, and material handling equipment.

Furthermore, the MA4 has an optional T-Smart (note 1) version, which can work with the PGMA (note 2) to achieve the following functionality.
-Set up the actuator’s stroke and speed
-Multiple signal feedbacks support
-Monitor real-time actuator status
-Up to 8 actuator synchronization
-Built-in safety mechanism
-Customized service for BUS required applications (note 3)

Note 1: TiMOTION develops T-Smart functionality. With T-Smart, the actuator has a built-in circuit board with a microprocessor that can operate the actuator without a control box.

Note 2: PGMA is a software program developed by TiMOTION. Users can install this programmer into the laptop and adjust the actuator parameters directly.

Note 3: Please contact your local sales department for further assistance.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	worm gear
Configuration	double-acting
Material	extruded aluminum
Motor	DC
Protection class	IP69K robust
Applications	industrial for agricultural machinery for materials handling for harsh environments
Other characteristics	compact pull push tug
Stroke (mm)	25 - 1000
Force (N)	0 - 2000
Speed (mm/s)	0 - 5.5
Ambient temperature	Max.: 85 °C (185 °F)Min.: -40 °C (-40 °F)
