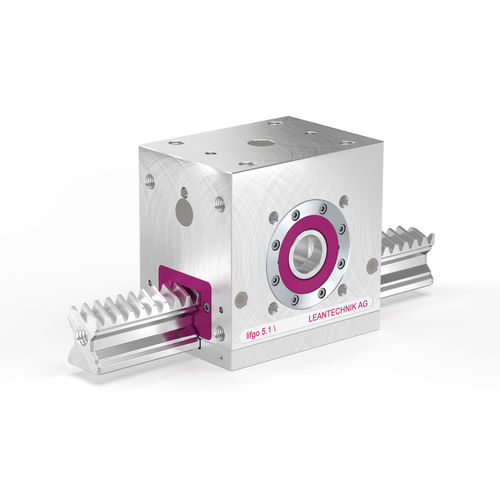

Minimize the volume in your design with our lifgo® SVZ!
• Helical Gearing
• Super Silent
• Tight Operating Parameters
• High Quietness
• Highest Precision
• Simple Installation
Application Example: lifgo® with helical gearing (SVZ)
You think our lifgo® is only used in the production of the automotive industry or where the extreme heavyweights need to be lifted ?!
A special application that we realized with the lifgo® SVZ because of its special conditions is the application at “Gulliver’s Gate” in New York. The customer needed a very quiet solution for his installation in the miniature world at Times Square, because of their public traffic. Our engineers chose a lifgo® linear 5.0 with helical gearing, as it took a very long distance that needed to be covered. The system was realized with one longitudinal and one stroke axis. With the help of our components, the launch of an aircraft at the airport is now realized.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Movement |
linear
|
| Type |
electric
|
| Technology |
|
| Other characteristics |
miniature
|
| Force (N) |
3400 - 14400
|
| Torque (Nm) |
|
| Speed (mm/s) |
3000 - 3000
|
| Max acceleration |
50 m/s² (164.04 ft/s²)
|
