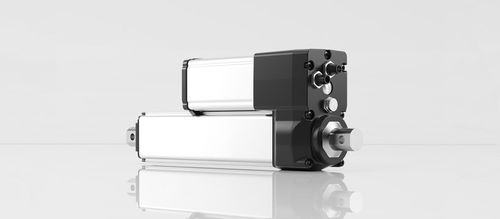

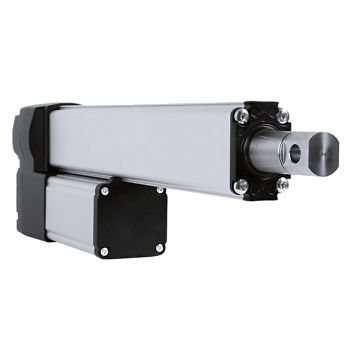

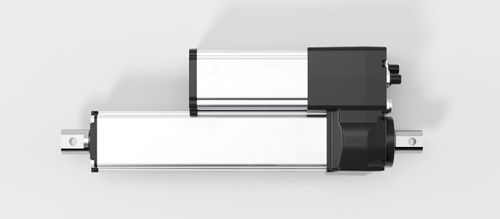

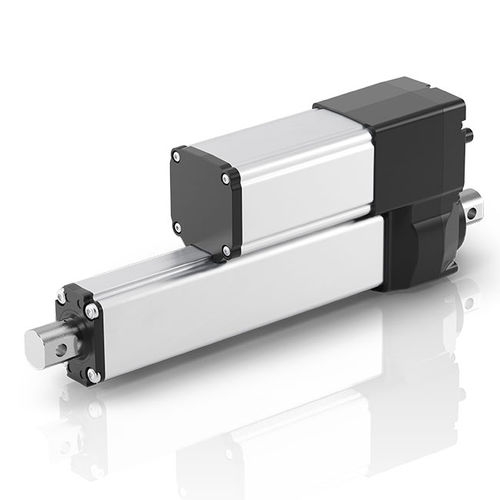

Linear actuator LD1000E

Linear actuator LD1000E

Linear actuator LD1000E

About


The LD1000E is a strong, robust and versatile linear drive suitable for use in the most demanding conditions. With a thrust force of up to 10,000 N and a stroke length of max. 1,000 mm, it can be used for a variety of applications in machines and vehicles. It can also replace many a pneumatic or hydraulic drive is various usages.

Versatile and customizable for perfect integrations
This linear drive is popular because of its great adaptability. You can order it precisely tailored to your needs.

- Stroke length: Your desired stroke length is freely selectable.
- Hanging mechanisms, adapters, couplings: The hanging mechanism can be selected to fit your requirements. You can also define your own specifications (e.g. with regard to the bore holes).
- Housing: Besides the standard color black, it is also possible to paint the housing in your desired color.

The high quality and resistant linear actuator
The LD1000E has a robust housing made of die-cast aluminium with a stable casing made
of anodized aluminium profile and a lift pipe made of stainless steel. Inside, there is a
maintenance-free DC motor that features enormous reliability and longevity. The housing
and hanging mechanism are manufactured with the greatest care and precision.

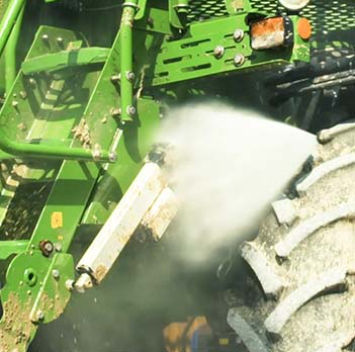

Thanks to its high protection class of IP69k (static), the housing can withstand a jet from
a high-pressure steam cleaner without any problems.

The LD1000E is often used in outdoor applications: for agricultural machinery, off-highway vehicles, municipal machinery and even in the offshore sector. In other words, it can be used wherever the linear drive must function precisely and reliably under harsh environmental conditions.



PARAMETERS

Parameter Name Parameter Value
Movement
linear
Type
electric
Motor
DC
Voltage (V)
24 - 12
Protection class
IP69K
Applications
  • for agricultural machinery
  • for harsh environments
Other characteristics
  • compact
  • high-performance
  • for heavy loads
  • with integrated limit switch
  • self-locking
Stroke (mm)
15 - 1000
Force (N)
10000 - 10000
Speed (mm/s)
130 - 130
