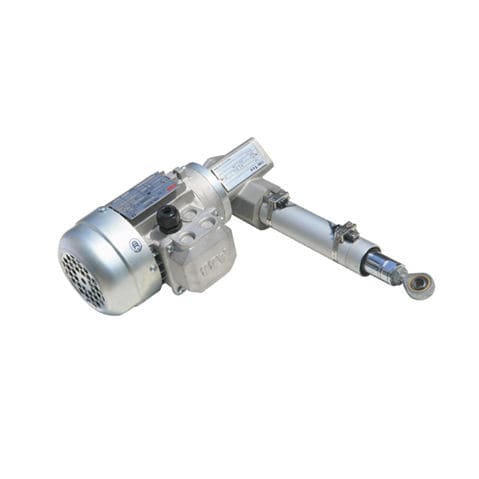

High strength/high wear-resisting material selection, high-precision parts processing, advanced design shell concept , high bearing capacity, impact resistance, low noise, long life of high quality products, to be able to work in bad industrial environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear actuator driven by 12/24/36/48 v dc motor, 220/380 v single-phase/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.


Linear actuator driven by 12/24 v dc motor, 220/380 v single/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.
According to the self-locking coefficient, define the self-locking performance, can realize the absolute synchronization linear actuator , with encoder can realize more precision positioning (position accuracy 0.1 mm), the accessories is numerous, can be suitable for all kinds of special occasions.
Working environment temperature 5 ℃ to 40 ℃, if you need -40 ℃ to + 70 ℃, consulting local office.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H)
long-life grease, maintenance free.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	worm gear trapezoidal screw magnetic piston
Material	stainless steel
Motor	DC, AC
Voltage (V)	36 - 48
Protection class	IP65 IP54 IP66 IP55 IP56
Applications	for medical applications industrial for the automotive industry for mobile applications for machine tools test for the electronics industry antenna for explosive atmospheres for robots guide for bed adjustment for swing doors for construction equipment for process automation for sliding gates for butterfly valves for scanner tables for fire and smoke protection for the harshest off-road environments for solar panels for washdown applications for the semiconductor industry for the aerospace industry for materials handling for photovoltaic louver adjustment for lifting for hospital beds for demanding applications storage for vehicles for agricultural machinery linear for mechanical testing index clamping for throttle valve for harsh environments for ball valves for furniture for solar trackers for welding applications for trolleys
Other characteristics	precision control high-efficiency high load capacity mechanical flange self-locking explosion-proof
Stroke (mm)	40 - 2000
Force (N)	400 - 200000
Speed (mm/s)	4 - 134
Ambient temperature	Max.: 60 °C (140 °F)Min.: -20 °C (-4 °F)
