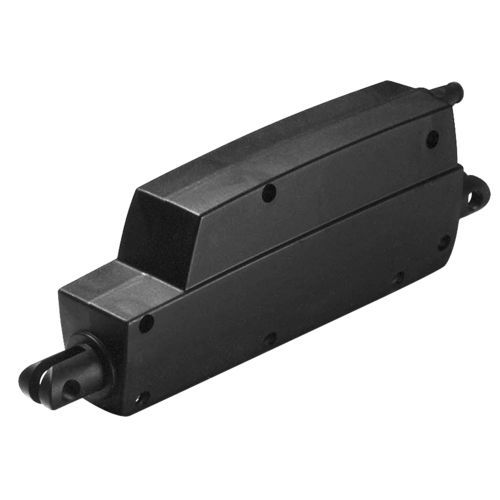

Thanks to its small size and outstanding performance, the actuator LA12 provides a practical and cost-effective alternative to small-scale traditional hydraulic and pneumatic systems.

The LA12 is ideal for applications requiring short linear movements. After many years on the market, this actuator has demonstrated that it is a very reliable and robust actuator that can handle almost any situation and challenge.

Max. thrust: 750 N
Max. speed: 40 mm/s
Stroke length: 19-130 mm

This actuator is available with basic IC™ functionality - including integrated H-bridge and flexible feedback options.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Motor	DC
Protection class	IP66
Applications	industrial
Other characteristics	compact high-performance small
Stroke (mm)	19 - 130
Force (N)	200 - 750
Speed (mm/s)	14 - 40
Ambient temperature	Max.: 60 °C (140 °F)Min.: -20 °C (-4 °F)
