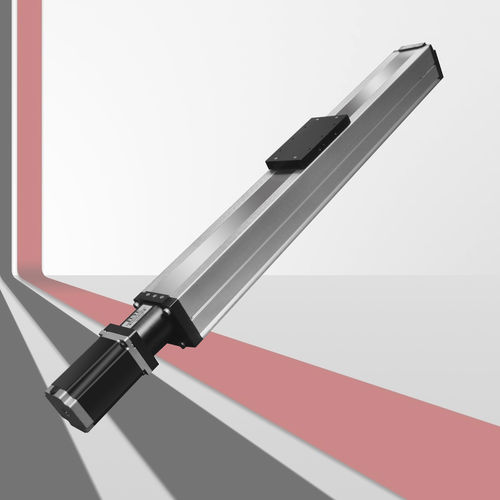

Dust Water Proof Enclosed Ball Screw Linear Module
Short Description:

Technical Feature

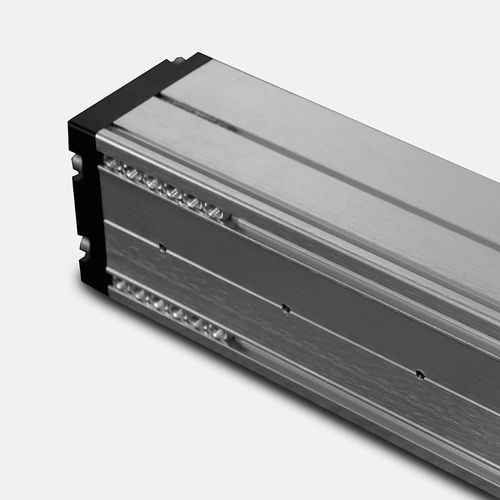

FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

Range of Application

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.


Series: FSL80
Stroke Range: 50mm-1200mm
Position Accuracy: 0.02mm
Max Speed: 220mm/s
Max Load: 40kg

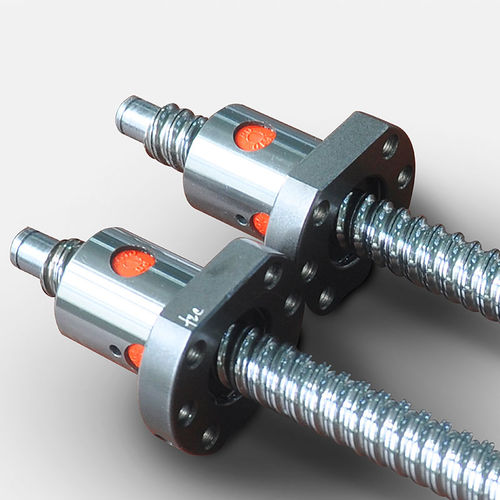

Ball Screw: G1610


To get professional service, we have some questions for you,
please try to answer in your enquiry:
1.What machine do you use the stage on?
2.How long stroke do need the linear be?
3.How is the load and speed need?
4.Do need motor and accessory together?
If need OEM or other special requirement, please tell us.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	stepper ball screw lead screw with servo-motor
Material	aluminum
Norms	ISO
Protection class	dust-proof waterproof robust
Applications	industrial for medical applications for medical equipment for bed adjustment for the automotive industry for robots for swing gates for the furniture industry for OEM for ultrasonic welding machines for furniture guide for sliding gates for lifting for swing doors for hospital beds linear for mechanical testing for solar trackers
Other characteristics	compact precision positioning high load capacity motorized high-performance guided long-stroke high-speed slide high-efficiency for heavy loads custom low-friction high-resistance high-torque single-axis
Stroke (mm)	50 - 1200
Force (N)	196.133 - 392.266
Speed (mm/s)	60 - 220
Repeatability (mm)	0.02 - 0.02
