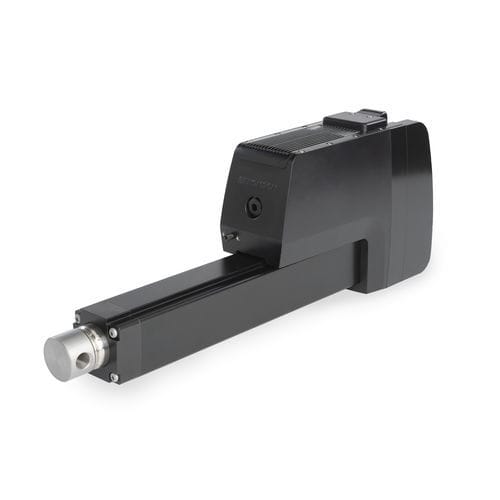

Ushering in the next evolution of electric actuators, the Thomson Electrak XD is strong enough to take on hydraulic applications while, at the same time, be smarter, smaller and more efficient than competitive technologies. On top of its strength (up to 25,000 N loads), the XD offers extensive protection against even the harshest conditions and ingress, and features enhanced controllability and diagnostics via onboard controls.


Electrak XD Feature Highlights:

- Dynamic/static loads up to 25000/32000 N
- Stroke up to 1200 mm
- Speed up to 75 mm/s
- Duty cycle up to 100% depending on loading condition
- Life up to 275000 cycles
- Internal load holding brake
- Optional shock load dampening
- Manual override in case of power failure
- Constant monitoring and diagnostics
- Onboard electronics
- IP69K (static), IP67 (static) and IP66 (dynamic)
- Low level switching
- Bus systems (CANopen® or SAE J1939)

Electrak XD Option Highlights:

- LXX = low-level signal motor switching
- LXP = low-level signal motor switching + position feedback output
- LXF = low-level signal motor switching + force feedback output
- LLX = low-level signal motor switching + end-of-stroke indication outputs
- LLP = low-level signal motor switching + position feedback + end-of-stroke indication outputs
- PLS = low-level signal motor switching + programmable end-of-stroke limits
- COO = CANOpen + open loop speed control (includes diagnostics, position feedback, overload indication plus static and dynamic force feedback)

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	ball screw cylinder
Voltage (V)	48 - 24
Protection class	IP66 IP69K IP67
Applications	for the automotive industry industrial for robots for OEM for process automation for harsh environments for wet environments for materials handling for lifting for agricultural machinery for demanding applications high-temperature for mobile applications for lifting applications
Other characteristics	integrated compact with shock absorber high-performance CAN Bus control for heavy loads with integrated limit switch long-stroke CANopen high-force for integration mechanical high-resistance with integrated electronics end-of-stroke wear-resistant with integrated position sensor with internal stroke limiter
Stroke (mm)	650 - 800
Force (N)	5500 - 32000000
Speed (mm/s)	75 - 75
Ambient temperature	Max.: 85 °C (185 °F)Min.: -40 °C (-40 °F)
