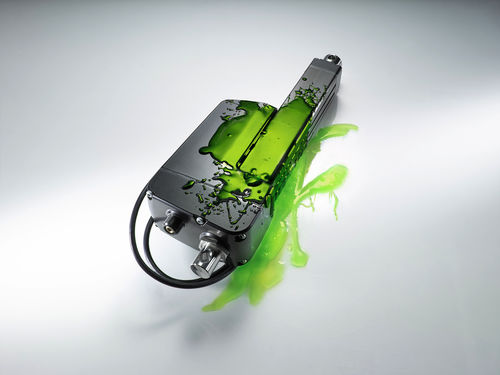

Electrak® LL Linear Actuators
Designed for long life, high duty cycle and the ability to work in the harshest environments, these smart electric linear actuators with brushless motors deliver bar-setting, world-class performance with 100% duty cycle and up to 600 km (375 miles) of maintenance-free life. The Electrak LL high duty cycle actuator is well suited for many applications – most notably mobile battery powered ones – that previously have had to employ more expensive and complex solutions.

Electrak LL Feature Highlights:
• Long-life ball screw and nut assembly
• Long-life load-bearing design
• Long-life manual override design
• Efficient long-life brushless motor
• Brushless motor drive system
• Specially designed onboard control, meeting railway safety standards (EN 50155, EN 60077, EN 4554)
• CE, RoHS, REACH compliant
• UV-resistant surface treatment
• Thomson Electronic Monitoring Package safety functionalities
• High corrosion protection

Electrak LL Option Highlights:
• LEX = Electronic Monitoring Package + low-level signal motor switching + external end-of-stroke limit switch inputs
• All stainless steel external hardware
• 4 kN at 30 mm/s or 6 kN at 15 mm/s
• Up to 500 mm stroke length

Electrak LL Applications:
• Pantograph control
• Lifting and positioning in mobile equipment
• Door, hatch and valve control
• Picking, placing and sorting
• Material handling
• Conveyor control

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	ball screw
Material	stainless steel
Motor	DC
Voltage (V)	24 - 24
Protection class	IP69K IP66 IP68 maintenance-free for harsh environments
Applications	for lifting for mobile applications
Other characteristics	positioning end-of-stroke with lock-nut
Stroke (mm)	100 - 500
Force (N)	18 - 4000
Speed (mm/s)	15 - 30
Ambient temperature	Max.: 85 °C (185 °F)Min.: -40 °C (-40 °F)
