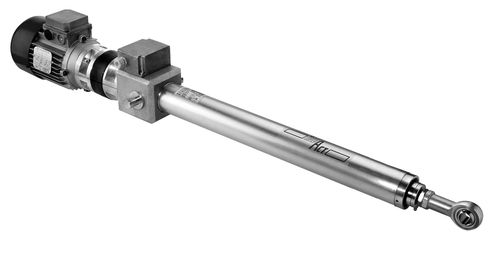

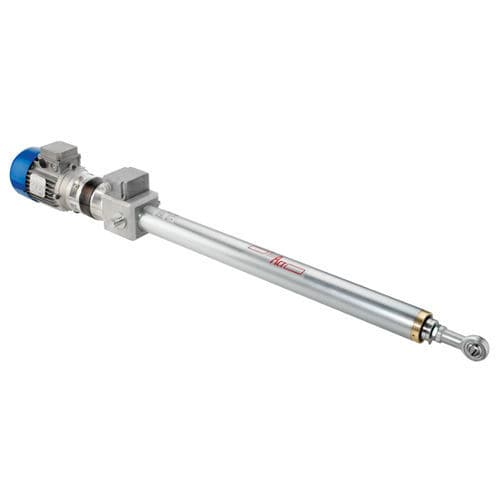

High efficiency Electric Linear Actuator, featuring in-line motorization (with or without precision planetary gearbox), suitable for industrial applications.

5 different sizes (ECU0, ECU4, ECU5, ECU6, ECU7).
Wide range of linear Force/Speed couples for each size.
Max nominal force up to 60 kN.
Max linear speed up to 466 mm/sec.
“T” version, featuring Trapezoidal spindle (self-locking).
“S” version, featuring Ball Screw spindle (high efficiency).
Powered by AC/3-phases/IP54 motor.
Duty Cycle 25%.
Grease lubricated
Rugged industrial build provides top performances together with highest reliability, to meet the most demanding applications in harsh and severe environments.
Wide range of standard accessories.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	ball screw trapezoidal screw
Motor	AC
Protection class	IP54 rugged
Applications	industrial
Other characteristics	precision motorized standard wide self-locking
Stroke (mm)	1 - 2000
Force (N)	0.25 - 60
Motor power	Max.: 4,000 W (5 hp)Min.: 70 W (0 hp)
Speed (mm/s)	7 - 466
