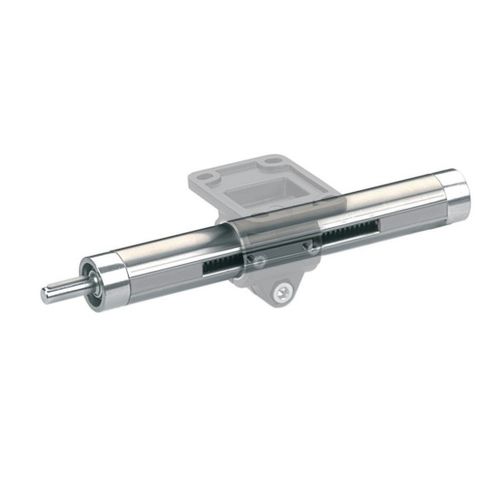

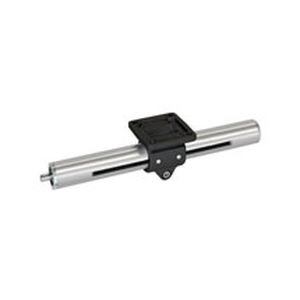

Flexible all-rounder –
with an unrivalled price-performance ratio

Bearing cover
•Dust/spray protection on Type 30-60
•Option of screw with slide bearing (resistant to fine dust/abrasions)

Covers
•Slot cover, as dust protection or stroke limitation
Carriages/fixing elements
•Wide range of models facilitates connection to your designs
•Option of carriage with slide bushing (lower input torque, wear minimized)

Features:
• Units for light to heavy moving applications
• Manual and motor-driven adjustments supported
• Different sizes can be combined
• Comprehensive range of accessorie

Options:
• Corrosion-protected variant E-II-stainless steel (see page: 78)
• Second free-running carriage

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	screw
Material	stainless steel
Other characteristics	slide
Stroke (mm)	0.2 - 300
Force (N)	8 - 5500
Torque (Nm)	1.5 - 170
Speed (mm/s)	12.5 - 20.8
Ambient temperature	Max.: 60 °C (140 °F)Min.: 0 °C (32 °F)
